CONTAINER DIAGRAM
There has been given some specification of ISO shipping containers for instant reference. Hope it will be a handy for those who are involved with the shipping business.
Shipping Container Capacity
|
Type |
Volume |
|
Length |
Width |
Height |
Net weight |
Max. Total weight |
|
LC_20 Low Cube |
app. 31 m³ |
outer |
6.058 mm |
2.438 mm |
2.438 mm |
app. 2.130 kg |
app. 24.000 kg |
|
LC_20 Standard |
app. 33 m³ |
outer |
6.058 mm |
2.438 mm |
2.591 mm |
app. 2.185 kg |
app. 30.480 kg |
|
LC_20 High Cube |
app. 37 m³ |
outer |
6.058 mm |
2.438 mm |
2.896 mm |
app. 2.350 kg |
app. 30.480 kg |
|
LC_40 Standard |
app. 67 m³ |
outer |
12.192 mm |
2.438 mm |
2.591 mm |
app. 3.740 kg |
app. 30.480 kg |
|
LC_40 High Cube |
app. 76 m³ |
outer |
12.192 mm |
2.438 mm |
2.896 mm |
app. 3.900 kg |
app. 30.480 kg |
|
LC_40 Pallet Wide |
app. 79 m³ |
outer |
12.192 mm |
2.462 mm |
2.896 mm |
app. 4.200 kg |
app. 34.000 kg |
DIFFERENT TYPES OF CONTAINERS WITH DIMENSIONS
|
|
|||
|
Dimensions |
STANDARD 20’ |
STANDARD 40’ |
HIGH CUBE 40’ |
|
Inside Length |
19’ 4” (5.900m) |
39’ 5” (12.036m) |
39’ 5” (12.036m) |
|
Inside Width |
7’ 8” (2.350m) |
7’ 8” (2.350m) |
7’ 8” (2.350m |
|
Inside Height |
7’ 10” (2.393m) |
7’ 10” (2.392m) |
8’ 10” (2.697m) |
|
Door Width |
7’ 8” (2.342m) |
7’ 8” (2.340m) |
7’ 8” (2.338m) |
|
Door Height |
7’ 6” (2.280m) |
7’ 6” (2.280m) |
8’ 5” (2.585m) |
|
Capacity |
1,172Cft (33.2Cu.m) |
2,390Cft (67.7Cu.m) |
2,694Cft (76.3Cu.m) |
|
Tare Weight |
4,916lbs (2,230kgs) |
8,160lbs (3,700kgs) |
8,750lbs (3,970kgs) |
|
Max Cargo Wt |
47,900lbs (21,770kgs) |
59,040lbs (26,780kgs) |
58,450lbs (26,510kgs) |

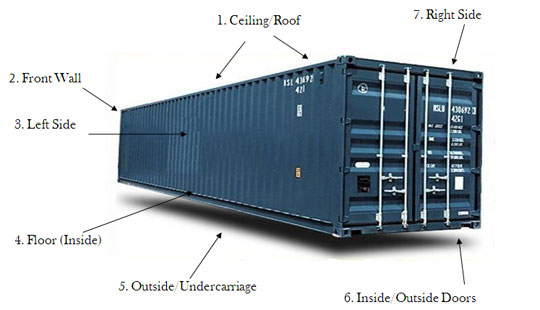

CONTAINER DIAGRAM
